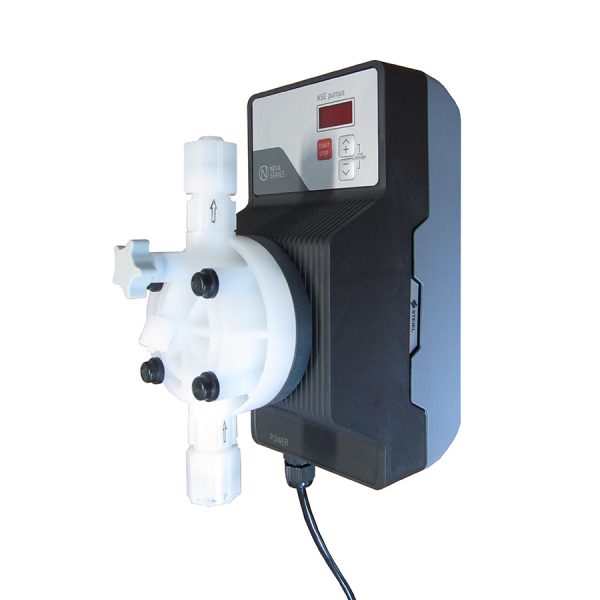

ELECTROMAGNETIC DOSING PUMPS (WALL INSTALLATION) – NSE155
ON/OFF pump, basic model
NOVA NSE150 is the basic model of the line of electromagnetic pumps designed for wall installation.
The pump works without external control; it is activated by the mains power supply and Start/Stop button on the front.
It is equipped with a dosing chamber built to prevent liquid leakage towards the magnet.
Available in different flow options , with dosing head in PVDF (standard) or methacrylate, also with self-bleeding valve , and models for dosing medium viscosity liquids.
For installation on a tank, a special bracket is available.
Supplied with installation kit, including hoses, injection valve and foot filter.
-
Pump Type
- ON/OFF pump, with no external command and input for level sensor
- Supplied with suction, delivery and purge hoses (standard in PVC / PE, on request in PTFE);
injection valve and foot filter in PVDF with PTFE seals
-
Electronic Features
- Interface with red LED display
- Standard power supply at 230 V~ (upon request, 115 V~), cable with plug
- Dosing frequency settable from 1 to 180 strokes/minute
-
Hydraulic Characteristics
- PVDF head; multi-layer membrane with PTFE coating on the side in contact with the liquid;
valves with PVDF body and ceramic ball; PTFE (FPM and EPDM) seals - Housing with V0-UL flame classification
- Available options:
- PVDF dosing head with 2-way self-bleeding valve
- Valves with spring for the dosage of medium viscosity liquids
- “Full PTFE” reinforced diaphragm
- Valves with PTFE ball for use with aggressive products
- Methacrylate dosing head, even 3-way self-bleeding version
- PVDF head; multi-layer membrane with PTFE coating on the side in contact with the liquid;
