Industrial Scale Indicator - PUE C/31H/Z Indicator
Industrial Scale Indicator - PUE C/31H/Z Indicator

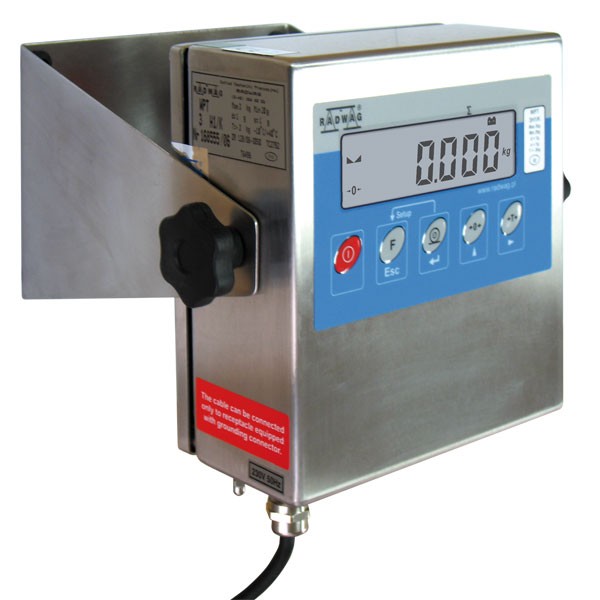

Industrial Scale Indicator – PUE C/31H/Z Indicator

Industrial Scale Indicator - PUE C/31H Indicator Industrial Scale Indicator – PUE C/31 Indicator
Industrial Scale Indicator - PUE C/32 Indicator Industrial Scale Indicator – PUE C/32 Indicator

$0.00

Industrial Scale Indicator

PUE C/31H/Z Indicator

Manufacturer: RADWAG

Product Code: WX-008-0003

SKU: EA-51719-120
Add to wishlist

Description

Industrial Scale Indicator – PUE C/31H/Z Indicator

Overview

Functions of an indicator PUE C/31H series:

  • measuring units: [g], [kg], [N], [ct], [lb];
  • tarring in whole measuring range;
  • automatic tare, tare memory;
  • parts counting with equal part mass;
  • +/- control of mass with set standard;
  • percent setup with set standard;
  • averaging of weighing result, digital filter;
  • control of power supply from batteries;
  • scale timer switch off;
  • adjustable backlight on powering by batteries;
  • adjustable baud rate between 1200-38400 bit/s;
  • continuous data transmission through RS 232;
  • manual or automatic mode for RS 232;
  • weighing loads with switched off autozero function;
  • measurement of maximum force or maximum mass placed on weighing pan;
  • measurement of force influencing the weighing pan (in Newtons);
  • start mass control;
  • slot for connecting an additional LCD display;
  • totalizing mode.

The indicator PUE C31 series enables designing printouts according to individual needs.

Datasheet

Maximum quantity of verification units 6000 e
Maximum quantity of divisions from converter 838 860 ×10
Maximum load cell impedance 1200 Ω
Minimum load cell impedance 80 Ω
Maximum voltage per verification unit 3,2 µV
Minimum volatge per verification unit 1,0 µV
Connection of load cells 4 or 6 wires + shield
Load cell excitation voltage 5V DC
Maximum increase of signal 19,2 mV
Display LCD (backlit)
Additional LCD display LCD (option)
Keyboard microswitch
IP rating IP 68 (1h max)/69
Housing stainless steel
Power supply 100 ÷ 240 V AC 50 ÷ 60 Hz / 12 V DC and battery
Operation time on batteries 45 h (average time)
Operating temperature -10 ÷ +40 °C
Atmospheric humidity 10÷85% RH no condensation
Net weight/gross weight 3,5/3,8 kg
Packaging dimensions 300×250×140 mm
Communication interface RS 232
Multiple range 1 or 2 ranges
Optional power supply 10-18V DC Imax=600mA
Number of buttons 5
Power supply odłączany zasilacz do ładowania akumulatora, wbudowany battery SLA
