Micro Melting Point Instrument -JHX-4
$755.65
MANUFACTURER : JIAHANG
ITEM NO : -JHX-4
- Description
- Size Guide
- Specification
- Product Document
- Vendor Info
- More Products
Description

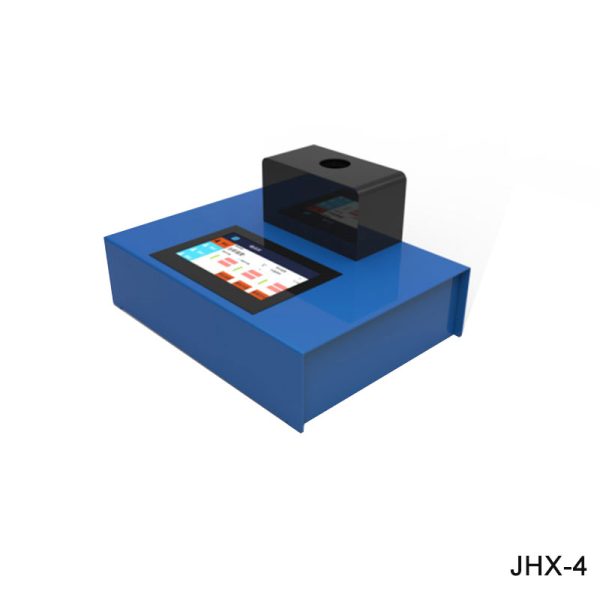

Micro Melting Point Instrument -JHX-4
The JHX-4 Digital Micro Melting Point Apparatus perfectly combines high-precision temperature control technology and high-definition optical lens magnification technology, not only to provide users with accurate, stable and reliable test results, but also to bring users an efficient and convenient test experience. The optical lens magnification technology can easily and clearly see the whole process of sample melting.
Digital Micro Melting Point Apparatus Introduction
1: Process 3 samples at a time;
2: Color touch screen;
3: The heating rate (0.1-10) °C/min can be set arbitrarily.
Fields of use
The melting point apparatus has an important position in the chemical industry and medical research. It is an indispensable instrument for the production of food, medicine, spices, dyes and other organic crystal substances.
Product Qualification
The Digital Micro Melting Point Apparatus has its own heating system, which can ensure a stable heating rate. The platinum temperature sensor has the advantages of fast response and high accuracy compared with the traditional method of using mercury thermometer.
| Model: | JHX-4 |
| Product name: | Digital Micro Melting Point Apparatus |
| Temperature range: | room temperature -320℃ |
| Resolution: | 0.1℃ |
| Heating rate: | 0.1℃-10℃(100 grades steplessly adjustable) |
| Temperature control method: | PID precise temperature control, fully enclosed design of the furnace body |
| Accuracy: | ±0.4℃(<250℃) |
| ±0.7°C (>250°C) | |
| Repeatability: | Melting point repeatability at 0.1℃/Min ±0.3℃ |
| Cooling method: | natural cooling |
| Display mode: | TFT high-definition true color screen |
| Data interface: | RS232 |
| Capillary tube: | outer diameter φ1.6mm, inner diameter: φ1.2mm |
| Voltage: | 100V-240V 50HZ-60HZ |
| Work rate: | 100W |
| Dimensions: | 250mm*250mm*150mm |
| Weight: | 1.2kg |
