PROGRAMMABLE DIGITAL METER OF D.C. CURRENT, D.C. VOLTAGE
DESCRIPTION OF PROGRAMMABLE DIGITAL METER OF D.C. CURRENT, D.C. VOLTAGE
The N30H meter is a programmable digital panel meter destined for the measurement of d.c. voltage or d.c. current. Additionally, the meter enables the indication of the current time. The readout field is a LED display, which allows the exposition of results in colours: red, green and orange. The measured input signal can be arbitrary converted by means of a 21-point individual characteristic.
Features of the N30H meter:
- l display colour individually programmed in three intervals,
- l programmable thresholds of displayed overflows,
- l 2 NOC relay alarms operating in 6 modes,
- l 2 switched relay alarms with a switching contact operating
- in 6 modes (option),
- l signaling of the measuring range overflow,
- l automatic setting of the decimal point,
- l programming of alarm and analog outputs with the reaction
- on the chosen input quantity (main or auxiliary input),
- l real-time clock with the function of the clock supply support
- in case of the meter supply decay,
- l programmed averaging time – function of walking window with the
- averaging time up to 1 hour,
- l monitoring of set parameter values,
- l interlocking of introduced parameters by means of a password,
- l recount of the measured quantity on the base of a 21-point
- individual characteristic,
- l service of the interface with MODBUS protocol in the
- RTU mode (option),
- l conversion of the measured value into a standard – programmable
- current or voltage signal (option),
- l highlight of any measuring unit acc. to the order.
6

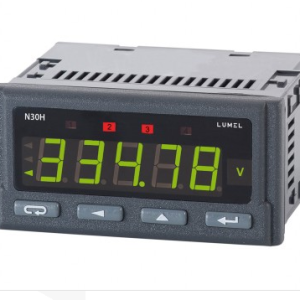

Fig. 1. View of the N30H meter
- l signaling of alarm operation – switching the alarm on causes
- the highlight of the output number,
- l galvanic separation between connectors: alarm, supply, input,
- analog output connections and RS-485 interface.
Protection degree from frontal side: IP65
Meter overall dimensions: 96 x 48 x 93 mm (with terminals).
The meter casing is made of plastics.
The meter set is composed of:
– N30H meter ………………………………………………….1 pc
– User’s manual ………………………………………………1 pc
– Guarantee card …………………………………………….1 pc
– Clamps to fix in the panel ………………………………4 pcs
– Seal …………………………………………………………….1 pc
When unpacking the meter, please check whether the type and execution
code on the data plate correspond to the order.
