TRANSFORMER TURNS RATIO TESTER
$4,287.91
Manufacturer: Vanguard Instrument
Model: ATRT-01 S3
P/N: 9023-UC
- Description
- Size Guide
- Vendor Info
- More Products
Description
TRANSFORMER TURNS RATIO TESTER
DESCRIPTION OF TRANSFORMER TURNS RATIO TESTER
Single Phase Automatic Turns Ratio Tester with two selectable test voltages (4VAC and 40VAC)

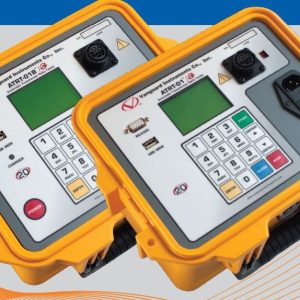

The ATRT-01 S3 is Vanguard’s fourth generation, micro-processor based, single phase, automatic transformer turns-ratio tester. This portable test unit is available in two models, the ATRT-01 S3 (line power only), and the ATRT-01B S3 (rechargeable-battery powered).
The ATRT-01 S3 uses the IEEE C57.12.90 measuring method to determine the transformer turns-ratio. The transformer turns-ratio is determined by precisely measuring the voltages across the unloaded transformer windings. The ATRT-01 S3’s measuring circuitry self adjusts before each measurement to ensure turns-ratio accuracy. Two selectable test voltages, 4Vac and 40Vac, offer flexibility in testing different types of transformers.
TECHNICAL SPECIFICATIONS
| TYPE | Transformer Turns Ratio Tester |
| PHYSICAL SPECIFICATIONS | Dimensions: 12” x 10” x 8” (30.4 cm x 25.4 cm x 20.3 cm) Weight: 9 lbs. (4.3 Kg) |
| INPUT POWER | 90 to 240 Vac, 50/60 Hz SLA battery delivering up to 4 hours of continuous operation per charge |
| MEASURING METHOD | ANSI/IEEE C57.12.90 |
| RATIO MEASURING RANGE | 0.8 – 15,000 (5 digit resolution) |
| TURNS-RATIO ACCURACY | 40 Vac: 0.8-1,999 (0.1%), 2,000-3,999 (0.25%), 4,000-15,000 (1%) 4 Vac: 0.8-1,999 (0.1%), 2,000-3,999 (0.25%), 4,000-15,000 (2%) |
| TEST VOLTAGE | 4 Vac @ 300mA, 40 Vac @ 70mA |
| PHASE ANGLE MEASUREMENT | 0 – 360 degrees, Accuracy ±0.2 degree (±1 digit) |
| POLARITY READING | In-Phase or Out-of-Phase indication |
| EXCITATION CURRENT READING RANGE | 0-2 Amperes, Accuracy: 2% of reading (±1 mA) |
| DISPLAY | Back-lit LCD (128 x 64 pixels), viewable in direct sunlight and low light levels |
| COMPUTER INTERFACE | RS-232C |
| PC SOFTWARE | Windows XP/Vista/7 Transformer Analysis Software (included with purchase) |
| INTERNAL TEST RECORD STORAGE | 128 records of 33 readings |
| EXTERNAL TEST RECORD STORAGE | Up to 999 test records on external USB Flash drive. |
| SAFETY | Designed to meet IEC 61010 (1995), UL 61010A-1, and CSA-C22.2 standards |
| ENVIRONMENT | Operating: -10ºC to 50ºC (15ºF to +122ºF) Storage: (-30ºC to 70ºC (-22ºF to +158ºF) |
| HUMIDITY (MAX) | 90% RH @ 40˚ C (104˚ F) non-condensing |
| ALTITUDE (MAX) | 2000m (6562 ft) to full safety specifications |
| CABLES | One 15 ft. (4.6m) Single phase cable, one power cord, one cable bag |
| OPTIONS | Transportation Case (Can hold unit and cables) |
| WARRANTY | One year on parts and labor |
| Specifications are valid at nominal voltage and ambient temperature of +25˚C (+77˚F). | |
Product Overview
The ATR-01 S3 can measure transformer turns-ratios ranging from 0.8 to 15,000 and can be used to test voltage regulators, power transformers, current transformers (CT), and potential transformers (PT). The ATRT-01 S3 also measures and displays transformer winding excitation current, winding polarity, and winding phase angle. Test results are displayed on a back-lit LCD screen (128 x 64 pixels) that is viewable in bright sunlight and low-light conditions.
In addition to measuring a transformer’s turns-ratio, the transformer’s name plate voltages can also be entered, and the ATRT-01 S3 will then display the turns-ratio percentage error. This convenient feature eliminates any user calculation errors when testing transformers.
When testing a 3-phase transformer, the ATRT-01 S3 provides connection information (H and X test leads to the transformer bushings) for phase A, B and C tests. The three phase test results (turns-ratio, excitation current, winding polarity, phase angle, and percentage error) are displayed on the LCD screen.
User Interface
The ATRT-01 S3 features a back-lit LCD screen (128 x 64 pixels) that is viewable in direct sunlight and low-light levels. A rugged 16-key membrane keypad is used to enter test information and to operate the unit.
Test Record Storage
The ATRT-01 S3 can store 128 records of 33 readings internally, and up to 999 test records on an external USB Flash drive. Test records can be recalled using the included Transformer Analysis PC software.
Computer Interface
Vanguard’s Windows®-based transformer analysis software, TTRA S2, is provided with each unit and can be used to remotely control the ATRT-01 S3 via the RS-232C port. Using the Transformer Analysis software, the user can retrieve test records (from the ATRT-01 S3’s memory or a USB Flash drive), analyze test results, and print test results on a desktop printer. Test results are automatically exported to Excel, PDF and XML formats.
Battery Power for Exceptional Portability
The ATRT-01B S3 is powered by a 6-volt, 7 ampere-hour, lead acid battery. This high capacity battery, coupled with the ATRT-01B S3’s low power consuming circuitry, allows the unit to be used continuously for up to 4 hours per charge. A built-in charger allows the unit to be used during charging.
