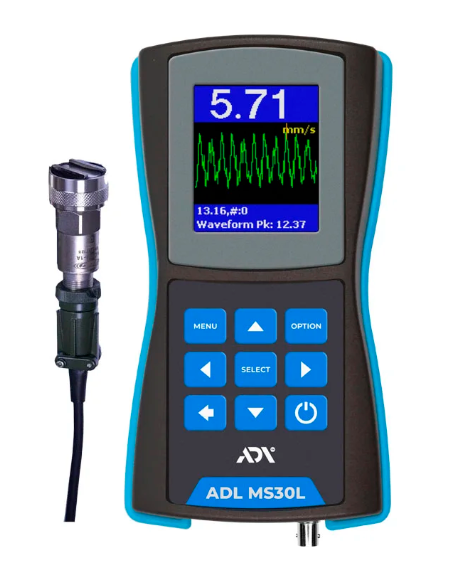

Vibration Analyzer MS30L
$1,643.00
Vibration Analyzer MS30L
MS30L Vibration measurement and analysis in duct
- Description
- Size Guide
- Additional information
- Features
- Vendor Info
- More Products
Description
Vibration Analyzer MS30L
MS30L Vibration measurement and analysis in duct
Vibration Analyzer MS30L
Application of the device
Vibration analyzer designed to measure general vibration parameters, FFT spectrum analysis of rotating equipment, rapid evaluation according to ISO 10816, balancing of rotating equipment, road condition monitoring, measurement and data collection.
Simple to use and reliable, the embedded software simplifies data management and reporting.
Vibration measurement with the vibrometer is very fast and requires no preparatory work. It is possible to make 100 measurements per shift by submitting reports on the status of the equipment in the enterprise.
Vibration values measured after a period of time (eg after 1 month) make it possible to predict vibration development and plan the timing of subsequent repairs. This allows you to significantly save money compared to scheduled repairs.
The values measured by the vibration analyzer can be used to diagnose unit defects using spectral analysis of the signal. For example, with the key and “defective” lines in the spectrum, it is possible to determine the condition of the bearings, imbalance, misalignment and other defects.
The main field of application of the devices is the operational control of the mechanical condition during operation, diagnosis, maintenance and repair of equipment: bearings, gears, turbines, generators, fans, pumps, rotors, distribution plants, ball mills, rolling mills, gearboxes, conveyors, motors, blowers and many other equipment. It applies to tracking both whole structures and individual items.
Vibration analyzers of the ADL MS series are used in metallurgy, mechanical engineering, petrochemical, light and defense industries, thermal and nuclear energy, servicing equipment of agricultural complexes, housing and communal services and transportation.
Features and functions of the device:
- Measurement of vibration velocity, vibration displacement and vibration acceleration;
- Possibility of obtaining vibration change trends using special software;
- Shock pulses method to determine the condition of the bearings;
- Spectral vibration analysis (fast Fourier transform);
- Analysis of the time signal;
- Envelope analysis to determine the condition of roller and plain bearings;
- display of RMS and peak vibration values;
- Non-contact infrared tachometer for measuring rotation speed;
- Phase measurement;
- Measurement in acceleration/end mode;
- Dynamic compensation on its own supports (up to 8 correction planes);
- Built-in battery;
- Easy and intuitive control;
- Dust and moisture protection design of keyboard, display and connectors;
- Bright screen.
The introduction of ADL series vibrometers in businesses will provide:
- significantly increase the reliability and service life of equipment,
- To eliminate the risk of emergency and to ensure the uninterrupted operation of the enterprise,
- detecting the increased vibration level in a timely manner,
- Increase profits by reducing the cost of unforeseen repairs and downtime.
Features
| PARAMETERS | VALUE |
| ADL MS 30L | |
| Number of vibration channels | one |
| Availability of speed channels | – |
| Ability to measure temperature | – |
| Frequency range | 1…10000Hz |
| Vibration acceleration measuring range | up to 200m/s2 |
| Vibration velocity measuring range | up to 200mm/s |
| Displacement measurement range (peak to peak) | up to 2000 microns |
| measurement error | up to 5% |
| possibility of balancing | – |
| Temperature measuring range | – |
| speed measuring range | – |
| FFT spectral analysis | 400, 800, 1600 lines on the spectrum |
| Memory | 4GB |
| PC communication and charging | USB |
| view | color, 128×160 dots |
| Battery | Internal, LiPo |
| terms of use | 0°C to 50°C up to 80% humidity |
| Overall dimensions | 132x70x33mm |
| Weight | 150gr |
Delivery content
- indicator block ADL MS;
- accelerometer
- 1.5 m cable to vibration sensor
- magnet for attaching the vibration sensor
- Optical probe, magnetic stand (version ADLMS 30, ADLMS 32);
- temperature sensor built into the probe (version ADLMS 30)
- Network USB charger;
- USB cable;
- software CD
- User guide;
- Carrying bag.
Additional information
| Ultrasonic Thickness Gauge ADL-UT20 | 2 Sensors, 3 Sensors |
|---|
- Measurement of vibration velocity, vibration displacement and vibration acceleration;
- Possibility of obtaining vibration change trends using special software;
- Shock pulses method to determine the condition of the bearings;
- Spectral vibration analysis (fast Fourier transform);
- Analysis of the time signal;
- Envelope analysis to determine the condition of roller and plain bearings;
- display of RMS and peak vibration values;
- Non-contact infrared tachometer for measuring rotation speed;
- Phase measurement;
- Measurement in acceleration/end mode;
- Dynamic compensation on its own supports (up to 8 correction planes);
- Built-in battery;
- Easy and intuitive control;
- Dust and moisture protection design of keyboard, display and connectors;
- Bright screen.
The introduction of ADL series vibrometers in businesses will provide:
- significantly increase the reliability and service life of equipment,
- To eliminate the risk of emergency and to ensure the uninterrupted operation of the enterprise,
- detecting the increased vibration level in a timely manner,
- Increase profits by reducing the cost of unforeseen repairs and downtime.
Features
| PARAMETERS | VALUE |
| ADL MS 30L | |
| Number of vibration channels | one |
| Availability of speed channels | – |
| Ability to measure temperature | – |
| Frequency range | 1…10000Hz |
| Vibration acceleration measuring range | up to 200m/s2 |
| Vibration velocity measuring range | up to 200mm/s |
| Displacement measurement range (peak to peak) | up to 2000 microns |
| measurement error | up to 5% |
| possibility of balancing | – |
| Temperature measuring range | – |
| speed measuring range | – |
| FFT spectral analysis | 400, 800, 1600 lines on the spectrum |
| Memory | 4GB |
| PC communication and charging | USB |
| view | color, 128×160 dots |
| Battery | Internal, LiPo |
| terms of use | 0°C to 50°C up to 80% humidity |
| Overall dimensions | 132x70x33mm |
| Weight | 150gr |
