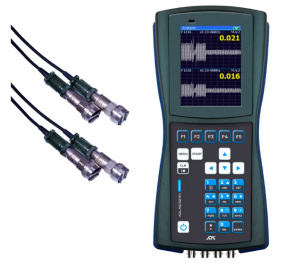

Vibration Analyzer MS54
$6,053.00
Vibration Analyzer MS54
Manufacturer: Adelix
Cat. No.: ADL MS54
Application of the device
Vibration analyzer is a compact tool with many functions for expert diagnosis of vibration condition and causes of unstable equipment operation.
Vibration analyzer designed to measure general vibration parameters, analyze the vibration spectrum of rotating equipment, quickly evaluate according to ISO 10816, monitor the status of measurements and collect data for subsequent diagnosis and adjustment of various industrial equipment.
- Description
- Size Guide
- Additional information
- Features
- Vendor Info
- More Products
Description
Vibration Analyzer MS54
Vibration Analyzer MS54
Application of the device
Vibration analyzer is a compact tool with many functions for expert diagnosis of vibration condition and causes of unstable equipment operation.
Vibration analyzer designed to measure general vibration parameters, analyze the vibration spectrum of rotating equipment, quickly evaluate according to ISO 10816, monitor the status of measurements and collect data for subsequent diagnosis and adjustment of various industrial equipment.
Features and functions of the device:
- 4 channels to measure and evaluate the vibration spectrum
- Classic reliable piezo accelerometers
- Wide frequency range for high quality and professional diagnosis
- Preparation of reports in PDF format and other formats
- Large capacity flash drive for storing measurements and reports.
- USB interface for PC connection
- Energy-intensive battery
- Measurement archiving and reporting software
- Intuitive interface
- Bright and colorful display.
The main application area of the devices,
It is the operational control of the mechanical condition during operation, diagnosis, maintenance and repair of equipment: bearings, gears, turbines, generators, fans, pumps, rotors, distribution plants, ball mills, rolling mills, gearboxes, conveyors, motors, blowers and many other equipment. Vibration analyzers of the MS series are suitable for monitoring both whole structures and individual elements.
Vibration analyzers of the MS series are used in metallurgy, mechanical engineering, petrochemical, light and defense industries, thermal and nuclear power engineering, maintenance of agricultural equipment, housing and community services, and transportation.
The presence of a service center based on Adelix company in Ankara, Turkey provides warranty and post-warranty service throughout the entire working period.
Features
vibration analyzer
| Parameter | value |
| MS54 | |
| Number of measuring channels | 4 |
| Frequency range | 1… 25000Hz |
| Vibration measuring range: – vibration acceleration – vibration velocity – vibration displacement |
200 m/s2 200 mm/s 2000 micron |
| speed measuring range | 10…200000rpm |
| FFT Spectrum Resolution | 100, 200, 400, 800, 1600, 3200, 6400, 12800, 25600, 51200, 102400 lines |
| Sharpness | up to 5% |
| Spherical | |
| Memory | 4GB |
| PC interface | USB |
| Screen | ColorVGA |
| Power and runtime | Lipo battery, up to 8 hours of continuous operation |
| Dimensions | 220 x 102 x 40mm |
| Block weight measurement | 470g |
Delivery content
- measuring block;
- Accelerometer, 1.5 m cable, magnet for fixing – 2 or 4 pieces;
- Optical sensor, magnetic stand;
- USB charger;
- USB cable;
- Flash drive with software and user manual;
- shipping and storage bag
- Additionally, for the version with laser alignment system:
- S, M sensors wired or wireless;
- Chain universal V-brackets;
- 100mm, 150mm stands;
- Roulette 3min.
